Fiber Optic Telemetry System

The NEC fiber optic telemetry system has proven reliable for transmitting signals between electrically isolated areas differing in potentials ranging from kilovolts to megavolts.

Applications

This is a very versatile system that can be customized to your specific needs. A single housing can transmit and receive both analog and binary status signals. A maximum of 32 channels (analog) or 44 channels (binary status) can be transmitted or received from a single housing.

The NEC fiber optic telemetry system is used in laboratories throughout the world as part of NEC Pelletron® accelerator systems for monitoring and control of accelerator functions.

Design

The NEC fiber optic telemetry system is designed for maximum convenience and flexibility. Polymer optic fibers are collected into bundles and connected to chassis units with a positive latching optical connector. This allows the quick connect and disconnect of fiber cables.

Signal Types

Analog Signals

The transmitter accepts 0-10 VDC signals into a 1MW input impedance. The receiver produces a corresponding 0-10 VDC signal, 10mA max, with a 0.1% linearity.

Binary Signals

The transmitter accepts either contact closures or 0-1.4 VDC signals as logical zero; either an open contact or a 4-24 VDC signal is a logical one. Input impedance is at least 100kW. The optical receiver output can appear either as a contact closure, a 24 VDC signal or a TTL-level signal.

Chassis Units

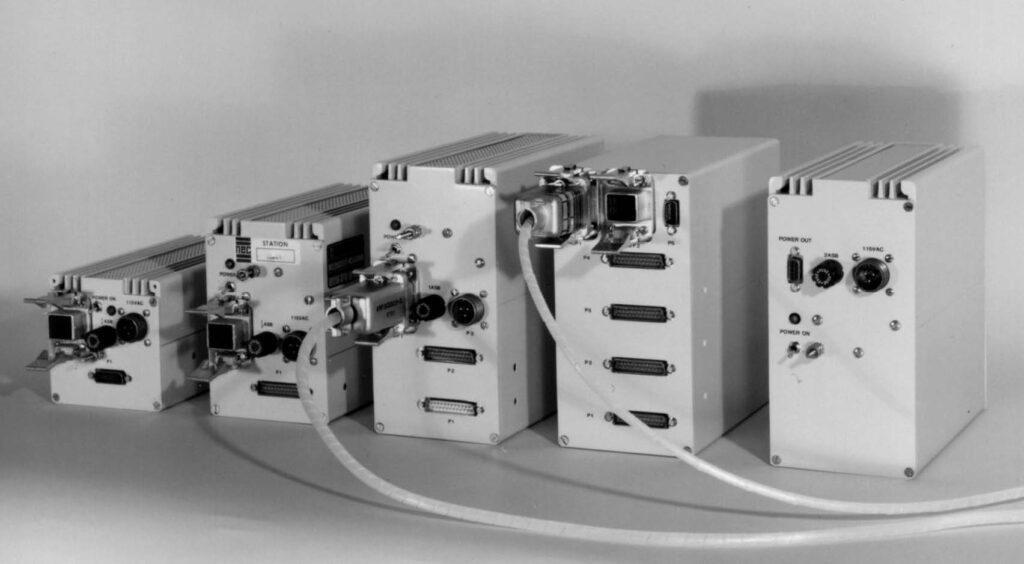

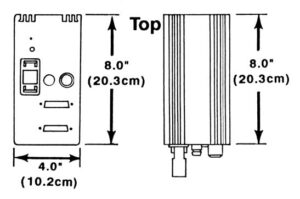

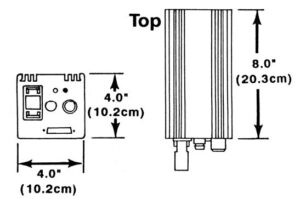

Housings are available in four sizes depending on the number of signal processing boards to be included. The smallest housing (size 1) contains the unit power supply and space for one signal processing board. A size 2 housing also contains the unit power supply with space for two signal processing boards. A size 3 housing contains the unit power supply with space for four signal processing boards. The largest size (size 4) has space available for eight signal processing boards. The power supply is contained in a separate size 4 housing.

Housing Size	No. of processing boards	Power Supply
1	1	included
2	2	included
3	4	included
4	8	in separate size 4 housing

The optic cable connects directly to the front of each unit with the positive latching optical connector. Input and output connectors for electrical signals are also easily accessible on the front of each housing.

Signal Processing Boards

Signal processing boards are listed under specifications in this section. The variety of boards available allows the precise capability desired at minimum cost. Analog signal transmitter and analog receiver boards are available to handle one to four channels. Status signal transmitter and status signal receiver boards are available to handle one to six channels. In addition, a high power status receiver board is available which will activate contact closures rated at 115 VAC, 1A. The standard status receiver board will control 10W maximum with 250mA maximum or 100V maximum. Special purpose boards are also available.

Optical Fiber Bundles

The NEC system uses a high quality polymer fiber capable of transmitting bi-phase encoded signals across voltages ranging from kilovolts to megavolts. These fibers are grouped into bundles with a maximum number of 22 fibers terminating in a single optical connector. These bundles can also be equipped with feedthroughs for use in pressurized systems. The maximum recommended length is 30 meters (approximately 100 feet).

Sample System

The NEC telemetry system can handle a maximum of 44 status channels or 32 analog channels in the largest, size 4 housing. However, this system can be designed to handle precisely the number of channels desired at a minimal cost. For example, a system designed to carry four channels analog transmission and four channels status transmission in each direction for a total of 16 channels is described in the price list.

Specifications

The NEC fiber optic telemetry system is designed for maximum flexibility. Number and type of channels can be selected for your specific requirements.

Fibers

Type:

Length:

Max. no. of fibers:

Polymer optic fiber, 1mm O.D.

Unjacketed – for use in million Volt pressured systems

Jacketed – for use in open-air

15 meters (50 feet); increased lengths by special order (30 meters maximum)

22 (per connector)

Analog Channels

Linearity:

Resolution:

Bandwidth:

Signal Voltage Range:

(one channel per fiber)

0.1%

1:4000

10Hz

0 to +10 VDC standard, 100mV sensitivity, negative polarity and other full scale voltages optional.

Circuit Board Types

Type OTA:

Type ORA:

Type OTS:

Type ORS:

Type ORTAS:

Type ORSHP:

(Input power requirement: 115 VAC, 3A, 50/400Hz)

Optical Analog Transmitter Board

1 to 4 channels which accept 0 to 10 VDC input signals

1 MOhm input impedance

Optical Analog Receiver Board

1 to 4 channels which produce 0 to 10 VDC output signals

Maximum current output 10mA

Optical Status Transmitter Board

1 to 6 channels which accept 24 VDC signals or contact closure inputs

Optical Status Receiver Board

1 to 6 channels which produce contact closure, 24 VDC (100mA) signals, or low = true TTL outputs

Up to 4 channels,

One each of the types (OTA, ORA, OTS, ORS), discussed above

Optical Status Receiver Board, High Power Option

Identical to type ORS, except has 1 to 6 channels of higher power relay contacts and occupies 2 slot widths in chassis

Contacts rated 120 VAC, 1A

Housings
Size 1 Holds one circuit board and power supply one – fiber cable connector one – 15 pin subminiature D-connector one – input power connector
Size 2 Holds maximum of two circuit boards and power supply one – fiber cable connector one – 25 pin subminiature D-connector one – input power connector
Size 3 Holds maximum of four circuit boards and power supply one – fiber cable connector two- 25 pin subminiature D-connector one – input power connector
Size 4 Holds maximum of eight circuit boards (no power supply) two – fiber cable connector four – 25 pin subminiature D-connector one – 9 pin subminiature D-connector Size 4 PS Power supply for size 4 chassis above one – 9 pin, female subminiature one – MS input power connector
